Main Parts Introduction of Mopa Laser Marking Machine
(1). JPT mopa laser control system
High performance laser producer, small volume, widely applied to on
both metal and non-metal.

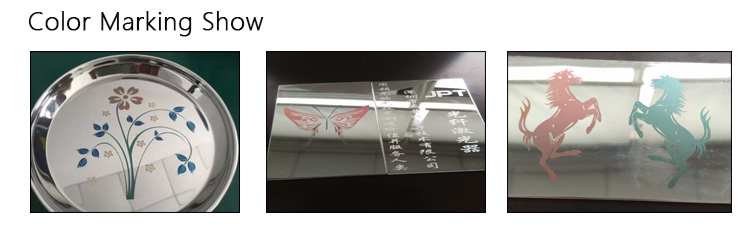

can colorful marking on stainless steel.
(2). Up-down working table
The table’s material is aluminum and the table can move
automatically according to ther processing requirements.
(3). Air cooling system.
High marking quality is based on good ventilation, ensure unimpeded
air flowing
(4). High precision and easy to operate.
With high quality machine parts and EZcad software make higher
precision.
specification
| Model | MH-MP30 |
| Laser Power | 30W |
| Wavelength | 1064mm |
| Frequency | 1-2000KHz |
| Pulse Width | 1-250ns |
| Marking Scope | 110X110mm (optional) |
| Marking Depth | 0.01-0.3mm |
| Marking Speed | <12000mm/s |
| Minimum line width | 0.02mm |
| Minimum Character | 0.15mm |
| Repeat accuracy | 0.002mm |
| Cooling Method | Air Cooling |
| Power supply | AC220V/50Hz |
| Consumption of Electricity | 800W |
Packing And Delivery
Delivery Time: 5-7 working days after receive the payment.
Package: plywood case.
Transportation Mode:MOPA laser marking machine would be shipped by
ocean transportation, air transportation or by express.
Equipment Quality Warranty
1) Every machine in the detection process, through specialized
testing equipment and facilities. All of our machine have 1 year
quality Warranty when customers receive machine.
2) Under warranty and normal use, if the machine has quality
problem, and customers want to chang the
part. We will change the part for free. Company have built
life-long correspondence files.
Service
1. 24 hour Technical support by phone, e-mail or MSN around the
clock
2. Friendly English version manual and operation video CD disk
3. 7-15 working days after down payment or full payment
4. Machine will be adjusted before it is delivered; operation
disk/CD was included.
5. Our technician can give you remote guide online (Skype or MSN)
if you have any question
6. Engineers available to service machinery overseas, seller and
buyer discuss the charges
