    Non Metal / Metal UV Laser Engraving Machine , Cell Phone Case Engraving Machine

    Ask Lasest Price
    Brand Name : TY Laser
    Model Number : MH-UV3/MH-UV5/MH-UV10
    Price : negotiable
    Payment Terms : Western Union, MoneyGram, L/C, T/T
    Supply Ability : 100 sets per month
    • Product Details
    • Company Profile

    Non Metal / Metal UV Laser Engraving Machine , Cell Phone Case Engraving Machine



    3w 5w 10w UV Purple Light Laser Marking Machine For Non Metal And Metal


    Product Description

    UV laser marking machine series, the principle of which is similar to the laser marking machine, uses a laser beam to mark the surface of various materials with a permanent mark. The labeling effect is the direct interruption of the molecular chain of the material by a short-wavelength laser (different from the deep-layer material exposed by the evaporation surface material produced by the long-wavelength laser) to display the desired etching pattern and text. The online flying marking function can be realized on the assembly line, and is mainly used for shallow wearing parts such as shallow wearing parts: photovoltaic solar glass. On the basis of cold working, the effect of the processed material will be better and the development will be better. When cold laser processing is used, the chance of material impact will be reduced to one percent.

    Purple light UV laser marking machine takes 355nm pumped purple light laser device as the light source and take advantage of previous generations machine to gain smaller diameter of focusing spot and fine marking effect.

    The metal absorb purple light higher than infrared and therefore more suitable for marking on metal and glass materials compared with infrared pump machine. Narrower pulse width of laser makes a shorter time of processing on materials, thus the materials avoid being deformed or burnt due to thermal. With smaller heat affected area and more beautiful marking effect, our products can meet customer’s demand of higher marking requirements


    ModelMH-UV3MH-UV5MH-UV10
    laser power3W5W10W

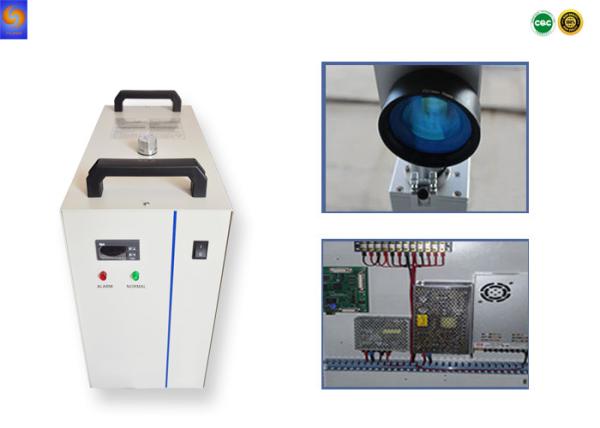

    Cooling Mode
    Air Cooling
    Water Cooling
    wavelength355nm
    marking range110x110MM,145x145MM (Optional)
    marking speed≤12000mm/s
    minimum line width0.01mm
    frequency1-100KHz
    Working Accuracy0.002mm
    power supplyAC220V/50Hz

    Product Feature

    1) Adopting doubling technique of intravenous frequency has greatly improve the stability of laser. Design on laser cavity adopts a series of optimization method, so as to ensure the beam quality as the fundamental mode.


    (2) The machine takes 355nm pumped purple light laser device as the light source. Narrower pulse width and smaller heat affection contribute to generate peak power. The higher the peak power is, the wider the adapting range of materials is. This implement perfect printing in some relatively hard material.


    (3) Higher pulse stability, namely better pulse consistency of laser produces the same carving effect, so it’s very suitable for precision marking. Higher pulse repetition frequency meets the need of quick marking and high production efficiency.


    (4) High efficiency of the photoelectric conversion and long service life.


    (5) Automatic in a rotary table (optional item), convenient feeding, fast speed, high efficiency.


    (6) The mark is of environmental protection, comply with RoHS standard.


    (7) It can support logos and graphs designed in DXF format from Auto-CAD, PLT, BMF, AI, JPG, etc.


    (8) It can mark date, bar code and two-dimension code automatically.


    (9) Superior performance, good stability, high conversion rate and low energy consumption.

    Application

    UV laser marking machine with its unique small power laser beam,is expecially suitable for ultra precision machining of the high-end market:


    (1) It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.


    (2) Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.


    (3) Pharmaceutical, food, beverage and cosmetics industry.


    (4) Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.


    (5) It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..

    Packaging Details
    1) Firstly, plywood case, its compressive strength and bearing quality is better, is the
    market of choice for the goods of high-weight packaging
    2) Secondly, the board area is big, the soil structure is good,and operational process is simple,
    So it is better in leakproofness and waterproof.
    3) Thirdly , when importing the plywood case is with fumigation-free , the procedure is simple.


    Our service

    Pre-sale service

    ***** Free sample marking
    For free sample making/testing, please send your samples to our company in China. Sample shipping cost should be paid by buyer.

    ***** Progressing Solution Design
    According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.


    After-sale service

    ***** 12 Months Warranty of Laser Generator.

    ***** English Version Installation Instructions.

    ***** Offer training at our factory for free (you could visit us and learn.)

    ***** Lifelong technical support online or by email and 24 hours online service to help you use our machine well.
