Description
Portable Co2 Laser Marking Machine adopts advanced digital high
speed scan galvanometer and module design that separate laser
generator and lifter, which is not only small volume, quick speed,
but easily marks on big objects surface.Also, It is very easy for
moving and installing on customer's automatic production line for
bar code and logo flying marking,

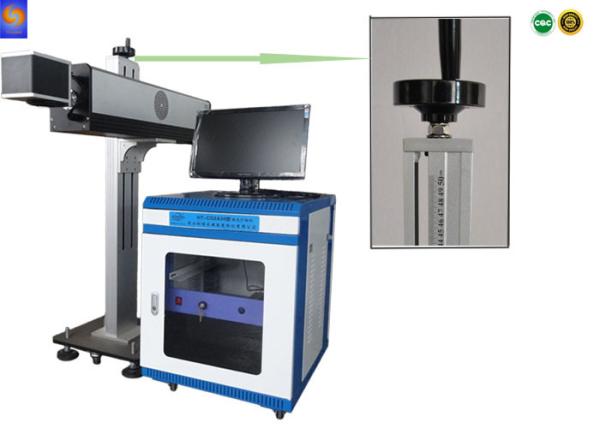

Portable 20w Co2 Laser Marking Machine MH-F20CP is the new
generation laser marking system,adopt industrial standardization
module design, full set of imported metal sealed radiation
frequency co2 lasers, high speed scanning vibrating lens and
extending focusing system, high stability, anti-intervention
industrial computer system, high precise vertical up-and-down
working table.
The conveyor belt is optional items for you to choose and can be
customized.
Feature
- Co2 laser is a gas laser that is used to mark on
non-metal(Organic)material such as wood,glass,packaging and
plastics.Support good marks on
all the non-metal material.
- The Co2 laser with metal laser generator tube can work long
time(more than 20000 hours)
- The Co2 laser marking machine need work with PC,once the software
is setting and press the "mark"button,the laser gas tube is
activated to generate a small,intense laser beam.The beam is
projected into the scan head,which controls and positions the beam
to form the markings.within only a few seconds, the laser device is
transferred from the laser chamber to an output media station.
specification
| Name | Desktop Mchinery 30W Online Flying Laser Marking Machine for non
matel Marking& Engraving |
| Model | MH-C30FP |
| Laser Power | 30W |
| Wavelengh | 10.64nm |
| Frequency | 1-50KHZ |
| Marking Scope | 110*110mm,145*145mm,200*200mm |
| Marking Depth | 0.01-0.3mm |
| Marking Speed | ≤12000mm/s |
| Minimum Character | 0.2mm |
| Repeat Accuracy | 0.002mm |
| Cooling Method | Air Cooling |
| Power Supply | AC220V/50Hz |
| Consumption of Electricity | 800W |
| |
Samples Show
Packing And Delivery
1. Prompt deliuver at the very day.
2. Sophisticated and profesional logistic agent.
3. Well-trained and disciplined packing teaam.
After Sale Service:
1. 24 hours online support.
2. Professional technical support.
3. Free design and guide for customer.
4. Free software update.
5. Detailed manual sent to you with the machine.
6. Two year warranty for the whole machine.( Except for man-made
damage.)
