Description

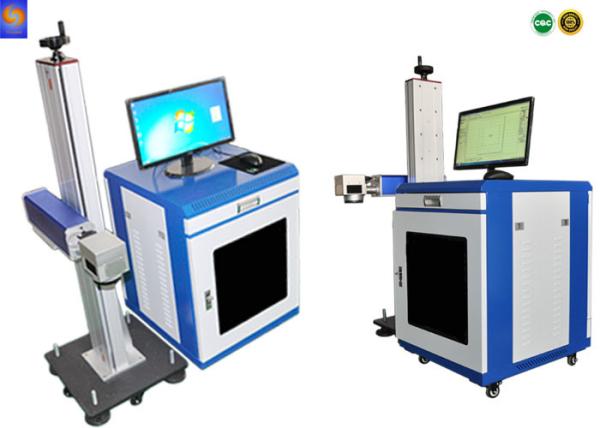

Our Flying Fiber Laser Series provide highest marking results
,which is capalbe of provinding one kind of solution for your
marking needs. Print to the laser directly from EZ-CAD software
program for easy job setup, and mark an entire table full of parts
at one time.
Our Flying Fiber Laser Marking Machine are widely used in the
marking for auto ,motocycle parts,packaging for goods,beverage ,
cigarette. nameplate, jewellery, watches. It is capable of
achieving all kinds of images in all colours. Our fiber laser beam
can mark and cut your designs on bare metal and some plastics.
Flying Fiber laser making machine is one of the most advanced laser
marking equipment in the world nowadays, because the features of
stable output power, great optical model, excellent quality of
laser beam, fast working speed and best marking effect and
efficiency. Also, it is easy to operate, has no wearing parts, low
power, consumption, more incomparable advantages like:better and
thinner marking lines, capable of being applied into ore advanced
industries needing higher demand of depth, smoothness and
precision, in order to perfectly meet requirments of consecutive
working in industries.
The conveyor belt is optional items for you to choose and can be
customized.
Feature
1. High Precision Re-position precision is 0.002mm
2. High Speed High quality laser scanning system makes the marking
speed up to 12000mm/s
3. Easy Operating Tranning vedio CD,trouble free
4. 10 Years Long Lifetime Fiber laser device adopts Raycus laser
sourse China top quality,100000 hours lifetime
5. No consumables Free of maintenance for 8~10 years
6. Air Cooling Adopts air cooling,excellent cooling effect than the
other cooling method
7. Small and compact: It can be put in desk and easy to
install.Aslo can handheld,easy operating.
specification
| Product name |
Air Cooling CNC Machinery Flying Fiber laser marking machine for Matel marrking engraving |
| Model | MH-F50FP |
| Laser Power | 50W |
| Wavelength | 1064nm |
| Frequency | 20-100KHz |
| Marking Mode | Static and dynamic |
| Marking fonts | Marked, dot matrix |
| Marking Scope | 110x110mm ,145x145mm,200x200mm (Optional) |
| Marking Depth | 0.01-0.5mm |
| Marking Speed | ≤12000m/s |
| Power Supply | AC220V/50Hz |
| Consumption of Electricity | 1000W |
| Operating temperature | 5-40℃ |
Samples Display
Packing And Delivery
1. Prompt deliuver at the very day.
2. Sophisticated and profesional logistic agent.
3. Well-trained and disciplined packing teaam.
After Sale Service:
1. 24 hours online support.
2. Professional technical support.
3. Free design and guide for customer.
4. Free software update.
5. Detailed manual sent to you with the machine.
6. Two year warranty for the whole machine.( Except for man-made
damage.)
