Handheld Pneumatic Portable Marking Machine Dot Peen Engraving
Machine For Metal,Auto Parts
Description
Pneumatic marking machine is computer-controlled printing pin in X,
Y two-dimensional plane by a certain trajectory, while print needle
to do high impact exercise in compressed air, and to print out a
certain depth mark on the workpiece.
After marking it becomes permanent marking, especially a variety of
large heavy workpieces marking needs off-site job marking
frequently, pneumatic standard machine is preferred.

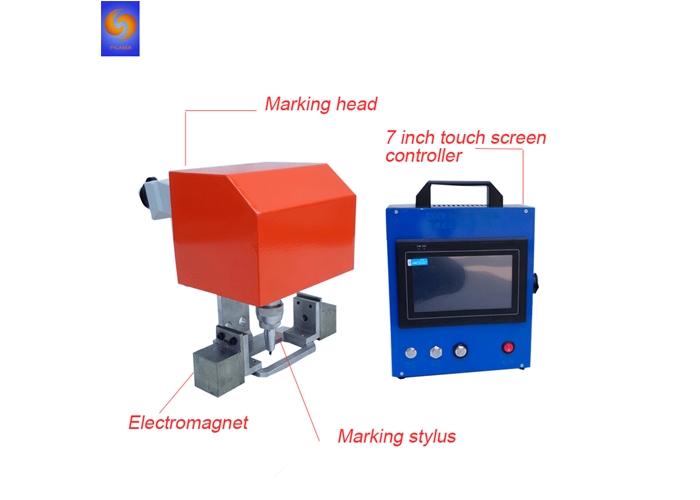

Portable Pneumatic Marking Machine with touch screen , NO NEED TO
connect with PC.
• The software can be auto updated with the date and printed.
• The software is with the function of auto adjustment and trace.As
the marking location changes, the marking needle can move to the
new location.
• Input methods using manual input, made by different contents of
different type of print documents, work piece management.
Main characteristics: a greater depth of direct marking by computer output, marking is
neat and clear
Main Typical applications: automobile and motorcycle parts, instruments, machinery,
automobiles, signage and other industries.Pneumatic marking machine
has the advantage of deep or shallow mark, whether graphics, text,
product serial numbers, trademarks, etc., after marking it becomes
permanent marking.
Features
| 1. | Marking contents: all kinds of logo (characters , Alphanumeric ,
date, numbers , serial NO, VIN codes, graph ,ect) on any metal or
non-metal material.
|
| 2. | support plane marking (curve or any angle).
|
| 3. | support flat or regular convex surface marking.
|
| 4. | Support line and dot marking
|
| 5. | Support Multi-lines content marking
|
| 7. | Need to change new temperature controller, blade& pressing mode
only after 3 years continuous operation,2 shifts a day and other
parts is still good and safe
|
| 8. | Operation manual and warranty card will be delivered to the clients
with machine
|
Application
It is adequate for marking characters, serials numbers and VIN
codes on automobile
or bodywork of motorcycles, car frames, automotive chassis,
connecting rods, engines,
cylinder various stepper motors and mechanical parts, machine
tools, metal
pipes, pump bodies, valves and fastening pieces.
Specifications of Portable Dot Peen Marking Machine
| Marking Range | 80*40(can be customed) |
| Suitable for | Customers who require large quantity and high accuracy | Applicable workpiece | Almost all material, shape, size |
| Marking speed | 2~5 letters/ s ( 2 mm high letter or number) | Marking depth | 0.01~ 1mm adjustable (according to the workpiece material) |
| Stylus pin hardness | HRA92 / HRA 93 | Repeat marking accuracy | 0.02mm~0.04mm |
| Operation system | 7″screen touch dual control system | Multiple fonts | Various fonts can be selected and loaded |
| Input mode | Manual operation, auto increasing serial numbers( can be set) | Marking content | All kinds of characters, serial numbers, VIN codes and graphics
anti – counterfeiting marks |
| Software system | The newest industrial marking system, which includes inlaid soft
keyboard, English interface switch, higher accuracy, faster speed
and can be connected to computer | Graphic edit | Simple graph can be drawn directly by our marking software |
| Marking direction | Four directions, tube surface and sector | Font edit | Various marking fonts can be remodelled |
| In support of bar code | Support all kinds of bar coding machine | Graphic transformation | Various transformating way of graphic files is available |
| Automatic memory | The set condition and serial numbers are memorized automatically | Digital retrieval | Everyday’ s marking contents can be kept and the marking data can
be retrieval |
| Analog display | Marking effect can be observed directly on the screen | Continuous working hours | > 24 hours |
| Voltage/ power | 220V 50HZ ±10%
About 300W | Impacting frequency | > 200HZ |
| Air pressure | >=0.6Mpa( actual use 0.2~ 0.4 Mpa) | Weight | 8kg |
| Dimension | 115*157*190mm 32cmx42cmx72cm | Connection | USB and RS-232 |
Product Details
Packing And Delivery
1. Prompt deliver at the very day.
2. Sophisticated and profesional logistic agent.
3. Well-trained and disciplined packing teaam.
4. After-sales,service:Any questions or problemsafter receiving the
product, please feel free to contact us.Problems would be solved
for you immediately.
Services
1.We can provide the main component for each marking machine,
Customers can send back the problem spare parts to maintenance or
replacement the new spare parts for your marker.
2. We depend on our domestic reputation and customer satisfaction
to succeed. Therefore, your feedback is extremely important to us.
3. If you have any particular suggestions or questions on our
products, please feel free to contact us. We will be very grateful
and reply your email or fax within 24 hours.
Warranty
One year warranty period (man-made damage is negotiable). Lifelong
maintenance and spare parts supply. Free design of fixtures as
customers required. Free training for operation staffs. Free
marking samples of customer provided.
