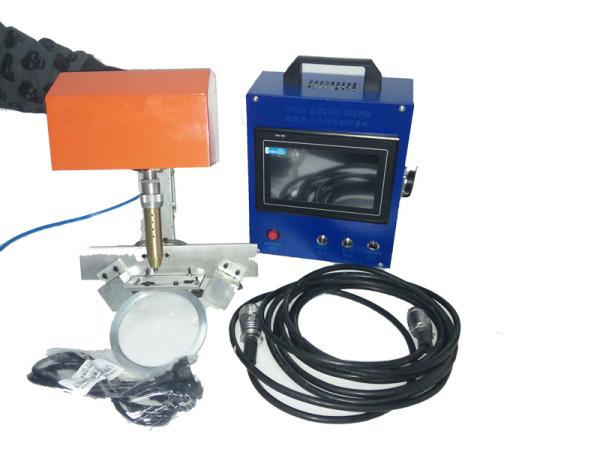

Portable Pneumatic Dot Peen Marking Machine For Car Frame / Metal /
Plate
Description
Pneumatic marking machine is computer-controlled printing pin in X,
Y two-dimensional plane by a certain trajectory, while print needle
to do high impact exercise in compressed air, and to print out a
certain depth mark on the workpiece.
After marking it becomes permanent marking, the workpiece of date
marking is generally less than 5000, you can choose pneumatic
marking machine, especially a variety of large heavy workpieces
marking needs off-site job marking frequently, pneumatic standard
machine is preferred.
Main characteristics: a greater depth of direct marking by computer output, marking is
neat and clear
Main Typical applications: automobile and motorcycle parts,
instruments, machinery, automobiles, signage and other industries.
Pneumatic marking machine has the advantage of deep or shallow
mark, whether graphics, text, product serial numbers, trademarks,
etc., after marking it becomes permanent marking.
How does the portable pneumatic marking machine work?
Under the control of the computer, the marking head moves freely
through the two-dimensional table in the plane. At the same time,
the needle passes through the pneumatic system to make a high
frequency vibration and clear marks are printed on the workpiece.
software
Multi-languages, serial No., Arabic numerals, arbitrary figure,
incrementing serial No., graphics,
VIN code, time, date, barcode reading marking, ticket, dot matrix,
2D code(two-dimension code),
circumferential parts marking and connected to database marking.
Available in a variety of languages (including English, French,
German, Spanish, Swedish, Finnish,
Italian, Portuguese, Cyrillic and Czech), the software also
contains features such as serial numbering, date and
time marking and password protection.Support multiple graphics and
fonts,compatible with AutoCAD, CorelDraw.Flexible and user-friendly
software, compared with the same numbers.
Database: Marking report available, special fonts and graphics
editor.
Application
Dot peen Marking Machine Suitable for marking Stainless steel,
high-grade steel, steel, Carbon steel, Copper, Iron, ferrous
metals, Aluminum, Brass and hard plastic materials in plastic,
mechanical, tool, metal, mold and mint Sector.
Dot pin Marking machine is widely used in automotive parts,
hardware tool, PC components and accessories, aerospace components,
industrial bearing, home appliances and other fields.
Specifications of Portable Dot Peen Marking Machine
| Marking speed | 2-5 characters(2x2mm) / s |
|---|
| Stroke frequency | 300 times/s |
| Marking depth | 0.01-1mm (according to the material) |
| Marking content | Alphanumeric info,data matrix,2D matrix,shift codes,barcode,serial
number,vin code,chassis number,characters,time,figure,logo and etc |
| Stylus pin hardness | HRA 92 / HRA 93 |
| Engraving area | 80x40mm |
| Dimensions | 32cmx42cmx72cm |
| Marking materials | Below HRC60 metallic and non-metallic materials |
| Repeat accuracy | 0.02-0.04mm |
| Work Voltage | AC 110V 60HZ or AC220V 50HZ |
| Rated power | 300w |
| Compressed Air( Pneumatic Air) | 0.2-0.6Mpa |
| Connection | USB and RS-232 |
| Controller | 7"LCD touch screen controller |
| Power type | Pneumatic |
| Marking directions | up, down, left, right, and the circular arc surface marking |
| Warranty | 1 year |
| Weight | 8kg |
Why choose us?
| 1. | We are a manufacturer, which can control the cost easilier than
trade company also can give you anwer more quickly. |
| 2. | As a manufacturer, we know much in technique and can give you more
support in technique problem. |
| 3. | We have longtime and mature experience for production. |
| 4. | Our products are complete in specifications with various of sizes. |
| 5. | We enjoy a good reputation in the customers in domestic and
overseas markets. |
Packing And Delivery
1. Prompt deliuver at the very day.
2. Sophisticated and profesional logistic agent.
3. Well-trained and disciplined packing teaam.
4. After-sales,service:Any questions or problemsafter receiving the
product, please feel free to contact us.Problems would be solved
for you immediately.
Services
1. We can provide the main component for each marking machine,
Customers can send back the problem spare parts to maintenance or
replacement the new spare parts for your marker.
2. We depend on our domestic reputation and customer satisfaction
to succeed. Therefore, your feedback is extremely important to us.
3. If you have any particular suggestions or questions on our
products, please feel free to contact us. We will be very grateful
and reply your email or fax within 24 hours.
Warranty
One year warranty period (man-made damage is negotiable). Lifelong
maintenance and spare parts supply. Free design of fixtures as
customers required. Free training for operation staffs. Free
marking samples of customer provided.
