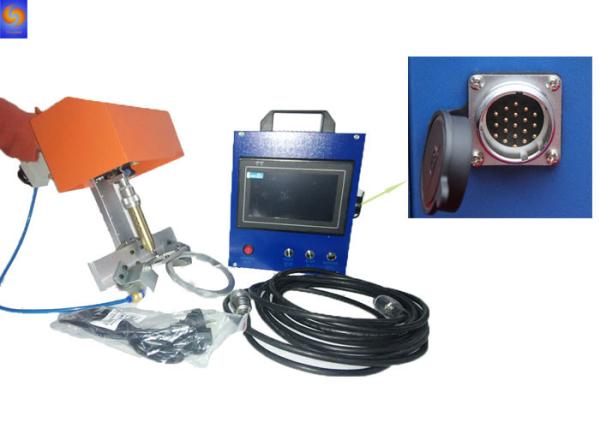

Protable Handheld Pneumatic Mini Dot Peen Marking Machine
for copper aluminum titanium steel
Description
Pneumatic marking machine is automatically incremented and the
value optional.The software can be auto updated with auto
adjustment and trace.As the marking location changes,the marking
needle can move to the new location.Input methods using manual
input, made by different contents of different type of print
documents.This machine with graphics editor print function, the
user can use AUTOCAD editing some simple graphicsMany characters
for optional, as more than 200 types English characters. It can
mark different characters same time with the rotary angles.There is
external routine interface in the software.Through the SQL
script,it can connect the external database.Automatically marking
function after start without human intervention.
Why Choose Dot Peen Marking?
By upgrading to dot peen marking, manufacturers can increase
production throughput and reallocate valuable labor resources. They
also enjoy downstream benefits from highly legible and accurate
product marks, eliminating the need for rework, scrap, or testing
due to improper product identification.
Product Features
1. Nameplate mark position quickly,quick access to the working
condition.
2. high speed operation,sustainable high frequency vibration, high
quality marking effect.
3. Efficient operating software, easy to operate, simple control.
4. Marks are fast and error-free
5. Stamp on rough or uneven surfaces
6. Use 2D Data Matrix codes for greater product traceability
7. Integration is easy: data can be retrieved from a host system,
PLC, bar code scanner, spreadsheet, or database
Marking Content
English characters, Arabic numerals, special symbols, graphics, can
automatically carry out the serial number printing, international
standard VIN number printing, 2D/dot matrix printing.
Application
1, automobile and motorcycle industry: the body, frame, chassis,
girders, engine, connecting rod, cylinder, piston, cylinder liner,
gear, pump, spring steel and other printing factory number,
production number, production date, name, trademark, etc;
2, machinery industry, for a variety of mechanical parts, machine
tools, metal products, steel pipe, casing and coupling, roller,
pump body, valve, flange and fasteners, marking;
3, instrumentation, mechanical and electrical equipment marking;
4, plastic products, leather products marking;
5, in the material such as aluminum, copper, stainless steel, PVC
panels (plaque) print data, factory number, production date, etc.;
Dial 6, signet
Specifications of Portable Dot Peen Marking Machine
| Marking speed | 2-5 characters(2x2mm) / s |
|---|
| Stroke frequency | 300 times/s |
| Marking depth | 0.01-1mm (according to the material) |
| Marking content | Alphanumeric info,data matrix,2D matrix,shift codes,barcode,serial
number,vin code,chassis number,characters,time,figure,logo and etc |
| Stylus pin hardness | HRA 92 / HRA 93 |
| Engraving area | 80x40mm |
| Dimensions | 32cmx42cmx72cm |
| Marking materials | Below HRC60 metallic and non-metallic materials |
| Repeat accuracy | 0.02-0.04mm |
| Work Voltage | AC 110V 60HZ or AC220V 50HZ |
| Rated power | 300w |
| Compressed Air( Pneumatic Air) | 0.2-0.6Mpa |
| Connection | USB and RS-232 |
| Controller | 7"LCD touch screen controller |
| Power type | Pneumatic |
| Marking directions | up, down, left, right, and the circular arc surface marking |
| Warranty | 1 year |
| Weight | 8kg |
Sample Show
Guarantee and after-sale service
1. 24/7 service is available to each customer. And if any technical
questions or problems, our engineers
will help you and give you solutions on the phone or by
face-to-face communication online.
2. One-year warranty is provided. (The detailed reference will be
written into the final contract.)
3. Professional staff for installation and training if needed.
4. Spare parts are supplying on time or doing some inventory if
promising certain sales volume.
5. Faster delivery, we will support our sole agent to do the stock
if good sales, then more convenient
and helpful.
