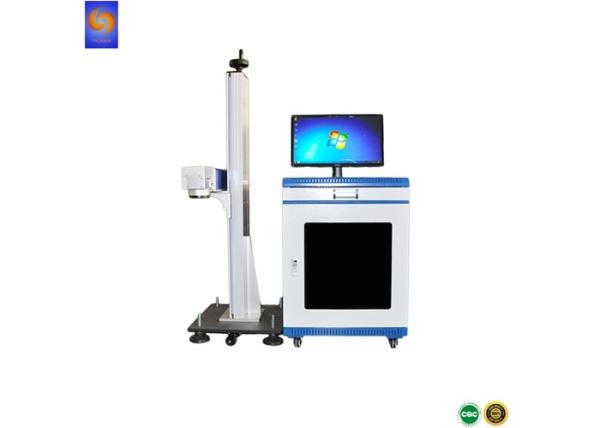

30W Fiber Fly Laser Marking Machine for PVC Pipe_HDPE Plastic Pipe
Laser Printer
15 Years' Experience for Laser Equipment
2018 Tylaser Hot Sale Product
20W 30W 50W Flying Laser Marking Machine
Features of 30W Fiber Fly Laser Marking Machine
1. Adopted Raycus / IPG / MAX Laser Source, laser power is
controlled by the software and serially adjustable.
It is mainly used for metals, also applicable to fine marking on
nonmetal materials with low requirements.
2. Software: WINDOWS system, couold edit word, alphabet, number,
random multi line photo and so on. Could support photo, CAD,
CORDLER and so on design document. The documents could save and
call, is convenient and high efficiency.
3. It could redlight preview beofre printing, could indicate
preview precisely for the marking position, and prevent missing
position.
4. Software could number, number jumped, create date, qr code, bar
code automatically.
5. Hardware: Multi appearance and design, could adapt different
shapes of products, 500mm printing height.
6. 220V power supply, the whole machine just need power line, foot
rest line some button and indication, is very easy to operate.
7. It could print by starting keyboard and mouse, also could print
by pedal switch, is very convenient.
8. It could choose rotary clamp, to fulfill 360 degree random angle
for round products, print automatically.
Array type to install the machine on working table, also could
choose installing two-dimension working table and auto lifting
light path, is convenient for focusing.
Applications
Material: all the metal and some non-metal
(1)Metal: Cast iron, stainless steel, aluminum, magnesium
alloy,zinc alloy, copper, nickel plating, galvanized and so on
Application
Examples: Mobile phone decoration, MP4 shell, hardware pieces,hutch
defends hardware clock and watch shells, medical equipment, tools,
accessories, jewelry accessories,
auto parts etc.
(2)Non-metal: ABS, PC, PE, PP, Epoxy resin. Application Examples:
Keyboard, buttons, charger, electronic components, integrated
circuit (IC), electrical appliances, etc.
Applicable industry:
Auto parts, digital products, communications, electronic
components, building materials, kitchen utensils, jewelry, gifts,
cleaning products, pharmaceutical, advertising, solar products,
daily necessities, and hardware and other industries.
| 1. Sheet metal fabrication | 6. Elecrical cabinet | 11. Elevator |
| 2. Automotive parts | 7.Aviation&Aerospace | 12. Lighting lamps |
| 3. Metal carfts & decoration | 8. Hardware | 13. Advertising |
| 4. Furniture | 9. Kitchenwareequipment | 14. Fitness equipment |
| 5. Medical equipment | 10. Agriculturalmachinery | 15. watches & glassware |
Specific application examples:
Pipeline marking to improve work efficiency, such as, product
serial number, QR code and barcode marking, company logo,
decorative pattern marking, etc.
Application material
cnc fiber laser marking machine vs CO2 Laser machine
| Material | CO2 Laser machine | Material | fiber laser machine |
| Wood | √ | Aluminum | √ |
| Acryic |
√ | Stainless Steel | √ |
| Fabric | √ | ABS | √ |
| Glass | √ | Brass | √ |
| Coated Metals | √ | Carbon Fiber | √ |
| Ceramic | √ | Carbon Nanotube | √ |
| Delrin | √ | Cobait Chorme Steel | √ |
| Cloth | √ | Copper | √ |
| Leather | √ | Colored Delrin | √ |
| Marble | √ | Diallyl Phthalate | √ |
| Matte Board | √ | Gless Filled PPEK | √ |
| Melamine | √ | Gless Filled Telfon | √ |
| Paper | √ | Magnesium | √ |
| Mylar | √ | Metal Plated Ceramics | √ |
| Press Board | √ | Molybdenum | √ |
| Rubber | √ | Mild Steel | √ |
| Wood veneer | √ | Nylon | √ |
| Fiber Glass | √ | Polybutylene Terephthalate | √ |
| Paintde Metals | √ | Polysulphone | √ |
| Title | √ | PET | √ |
| Plastic | √ | Santoprene | √ |
| Cork | √ | Silicon Carbide | √ |
| Corian | √ | Silicon Steel | √ |
| Anodized Aluminum | √ | Silicon Wafers | √ |
Specification
| Product name3 | 30W Online Flying Laser Marking Machine |
| Core Parts & Brand & Lifetime | Core Parts: Fiber Laser Source Brand: IPG, SPI, Raycus, Max, JPT (optional) Lifetime: 100, 000 hours |
| Model | MH-F20FP,MH-F30FP,MH-F50FP |
| Type | Optical Fiber Laser Marking Machine |
| Laser Power | 20W, 30W, 50W (optional) |
| Wavelength | 1064nm |
| Frequency | 20-100KHz |
| Marking Mode | Static and dynamic |
| Marking fonts | Marked, dot matrix |
| Marking Scope | 110x110mm 145x145mm 200x200mm (Optional) |
| Marking Depth | Marking Depth |
| Marking Speed | ≤12000m/s |
| Power Supply | AC220V/50Hz |
| Consumption of Electricity | 800W, 1000W |
| Operating temperature | 5-40℃ |
| Cooling Mode | Air Cooling |
| Continuous Working Hours | 24 hours |
| OEM / ODM | Welcome |
Samples Show
After - sales service
1. Warranty
12 months warranty for whole machine.
2. Technical support
Lifelong technical support online or by email and 18 hours online
service to help you use our machine well.
3. Overseas service
Offer oversea service for training,installing, operating if
necessary (Buyer need offer food & accommodation, round tickets and
engineer charges USD200/day)
4. Tranining service
Offer training at our factory for free (you could visit us and
learn)
