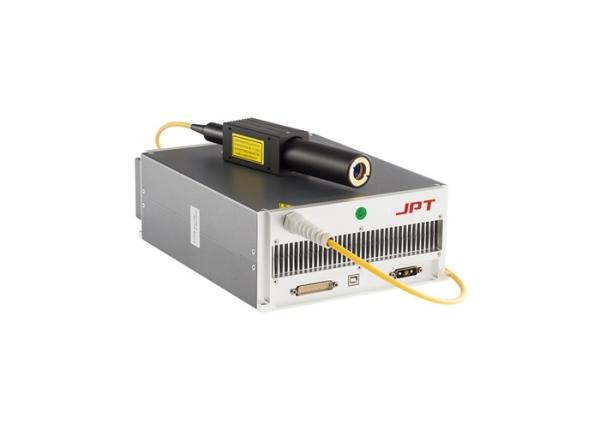

JPT 30w fiber laser source / generator YDFLP-30-M6+-L1 for fiber
laser marking machine
Application of JPT Fiber Laser Source 30W
1. Silicone Keypad Marking
2. Metal Deep Engraving
3. Metal Surface Processing
4. High Frequency Line Processing
5. Jewellery and mobile phone shell marking
6. Mark black color on aluminum, mark colors on stainless steel
Application Advantages
1ns~250ns
1ns-250ns wide adjustable pulse width, wider application range of
material.
Wide repetition rate for diverse application.
Excellent beam quality, excellent processing performance.
First pulse availability and quicker pulse response speed, good
choice for highly precise & fine marking.
No light leaking, safe marking.
Parameters
| Laser Type | Unit | MOPA |
| Product model | | YDFLP-20-M6+-S | YDFLP-30-M6+-L1 | YDFLP-30-M6+-S |
| m² | | <1.3 | <1.8 | <1.3 |
| Delivery Cable Length | m | 2 |
| Nominal Average Output Power | W | >20 | >30 | >30 |
| Maximum Pulse Energy | mJ | 0.5 | 0.9 | 0.5 |
| Full Power Repetition Rate Range | kHz | 40-2000 | 31-2000 | 60-2000 |
| Pulse Repetition Rate Range | kHz | | 1-2000 | |
| Pulse duration | ns | 1-250 | 2-250 | 2-250 |
| Longtime Average Power Stability | % | <5 |
| Cooling Method | | Air Cooling |
| Supply DC voltage(VDC) | V | 24 |
| Current Consumption | A | <8 | <10 | <10 |
| Current Supply Consumption | A | >8 | >10 | >10 |
| Power Consumption@20°C | W | <120 | <150 | <150 |
| Centra| Emiss| on Wavelength | nm | 1064 |
| Emission bandwidth@3dB | nm | <15 |
| Polarization | | Random |
| Anti- Reflection Protection | | YES |
| Output Beam Diameter | mm | 7 | 6 | 7 |
| Output Power Tuning Range | % | 0-100 |
| Operation Temperature | °C | 0-40 |
| Storage Temperature | °C | -10～60 |
| Weight | KG | Net weight 8; Gross weight 9.75 |
| Size | mm | 315x220x99 |
FAQ
Why choose your company?
We’re professional laser marking machines manufacturer. We’re more
familiar with customer’s marking or engraving application so we’re
in a position to recommend a more suitable model to customers.
What’s MOQ?
One piece. You can mix it with other laser machine parts freely.
What’s delivery time?
Within 5 working days after receive payment.
What’s your payment terms?
T/T, western union
