3W 5W UV Laser Marking Printer , 3D Laser Engraving Equipment For USB Cable

Ask Lasest Price
Brand Name :	tylaser
Model Number :	MH-UV3/MH-UV5
Price :	$12,500-$26,900 set
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	100 sets per month
Delivery Time :	7 working days

Add to Cart

Product Details
Company Profile

3W 5W UV Laser Marking Printer , 3D Laser Engraving Equipment For USB Cable

2018 Factory Price 3W 5W UV Laser Marking Machine for USB Cable

Product Introduction

TY Laser UV laser is cold ligh source. UV laser with short wavelength,focus,smaller spot,belongs to cold process with a little heat affecting,good beam quality, it can achieve hyperfine marking.Most materials can absorb ultraviolet laser,it is widely applied on industrials; with very little heat affecting area, it won't have heat effect,there is no burning problem,pollution-free,non-toxic,high marking speed,high efficiency,the machine performance is stable,low power consumption.

Product Application

1. It is widely used in electronic components, battery chargers, electric wire, computer accessories, mobile phone accessories (mobile phone screen, LCD screen) and communication products.

2. Automobile and motorcycle spare parts, auto glass, instrument appliance, optical device, aerospace, military industry products, hardware machinery, tools, measuring tools, cutting tools, sanitary ware.

3. Pharmaceutical, food, beverage and cosmetics industry.

4. Glass, crystal products, arts and crafts of surface and internal thin film etching, ceramic cutting or engraving, clocks and watches and glasses.

5. It can be marked on polymer material, majority of the metal and non-metallic materials for surface processing and coating film processing, pervious to light polymer materials, plastic, fire prevention materials etc..

Technical Parameters

Type	MH-UV3	MH-UV5	MH-UV10
Laser Wavelength	355±nm
Average Output Power	≤3W	≤5W	≤10W
Beam Quality	<1.5M	<1.6M	<1.7M
Laser repetition rate	10-100KHz
Standard Marking Scope	110*110mm
Optional Marking Scope	110110mm \|145145mm \|
Maximum Marking Speed	12000mm/s
Maximum Line Width	0.01mm
Minimum Character Height	0.15mm
Repeated accuracy	0.002mm
Marking Depth	1.0-1.5mm
Consumption of Electricity	600W/AC220V/50Hz
Cooling Method	Water Cooling

Application areas

Mainly used in the ultra-fine processing of high-end market, cosmetics, pharmaceuticals, food and other polymer materials, marking bottles, flexible PCB board marking, dicing; silicon wafer micro-hole, blind hole processing; Dimensional code marking, surface drilling of glassware, metal surface coating marking, plastic keys, electronic components, gifts, communications equipment.

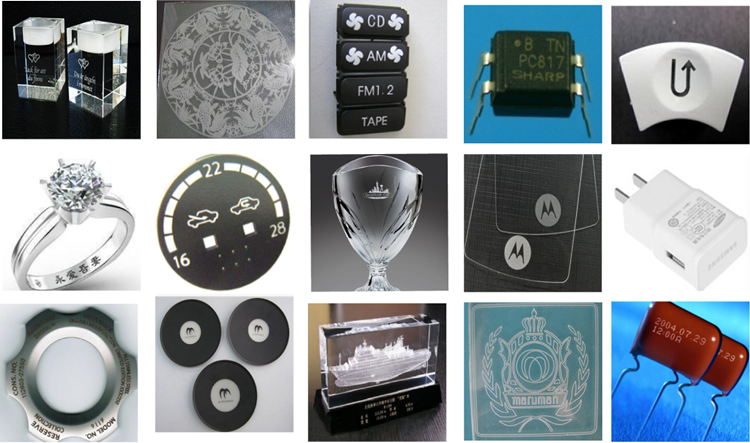

Samples

Packaging & Shipping

1. We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
2. Air-Worthy Packing or Sea Packing which comply with international standard. We can send machine to your port or door address by sea.

Pre- sale Service:

1. Inquiry and consulting support

2. Sample testing support

3. View our factory

After-Sale Service:

1. Training how to install and how to use the machine

2. We offer 1 Year warranty for whole machine (except artificial)

3. 24 hour technical support online like Skype, you can calling us if urgent

4. We offer free training in our factory, and our engineers available to service machinery overseas if needed

Buying Guide:

In order to recommend the suitable machine model, may i know info:

1. What material do you mainly mark? Or what is your products?

2. What si the marking size do you need? we can provide 70*70mm, 110*110mm, 200*200mm, 300*300mm etc.

3. Do you also marking on cylinder items? we can provide you with rotary system.
